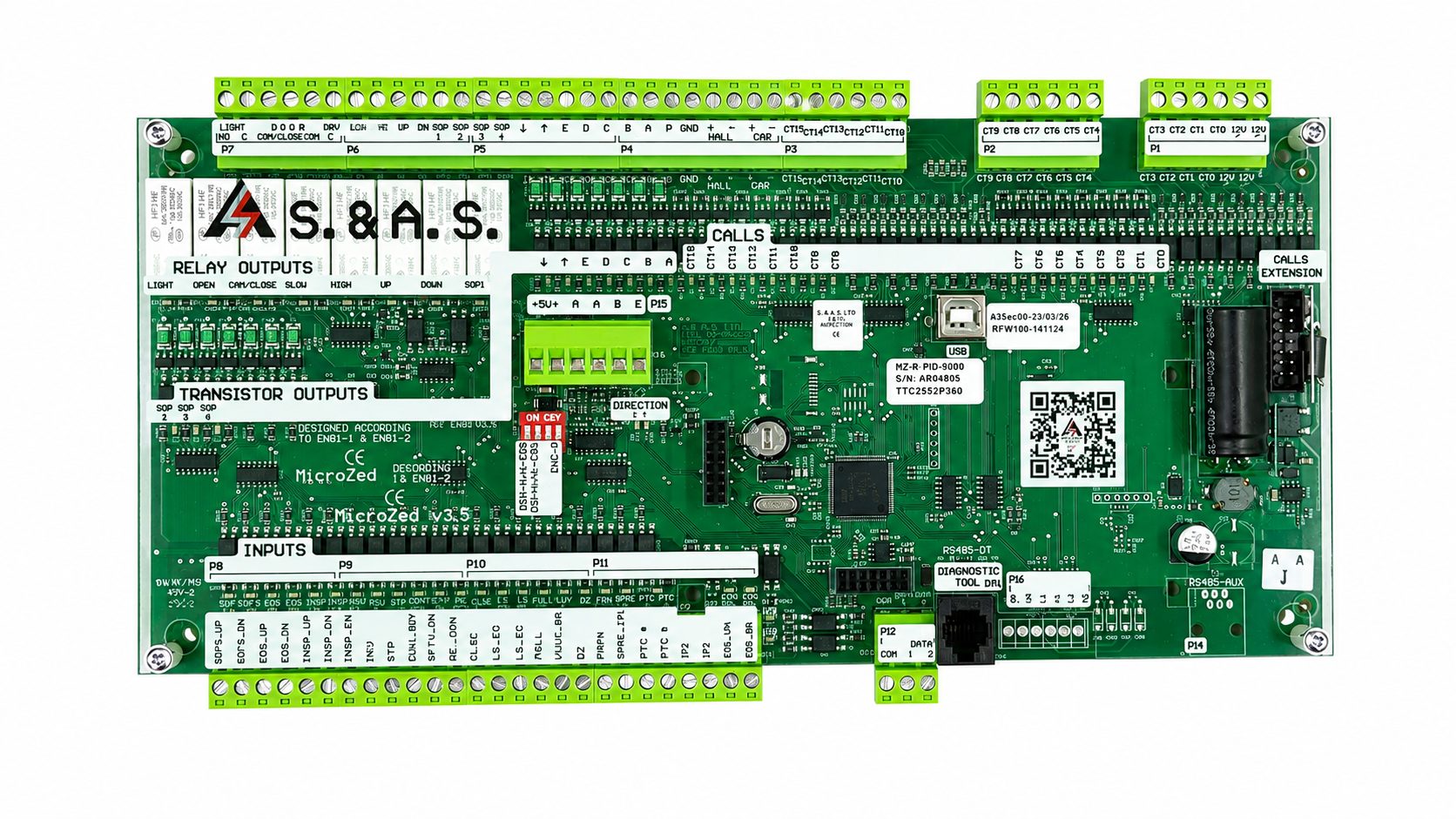

ELEVATOR CONTROLLER COLLECTIVE 2.5M/S MICROZED V3.5
Collective up to 40 stops with relay outputs
Event log
Serial calls option
AC1 / AC2 speed / Hydraulic
VVVF direct approach for up to 2.5 m/s
Access Control using the COP
Carcall cancellation feature
On-site firmware upgrade
Conforms to EN81

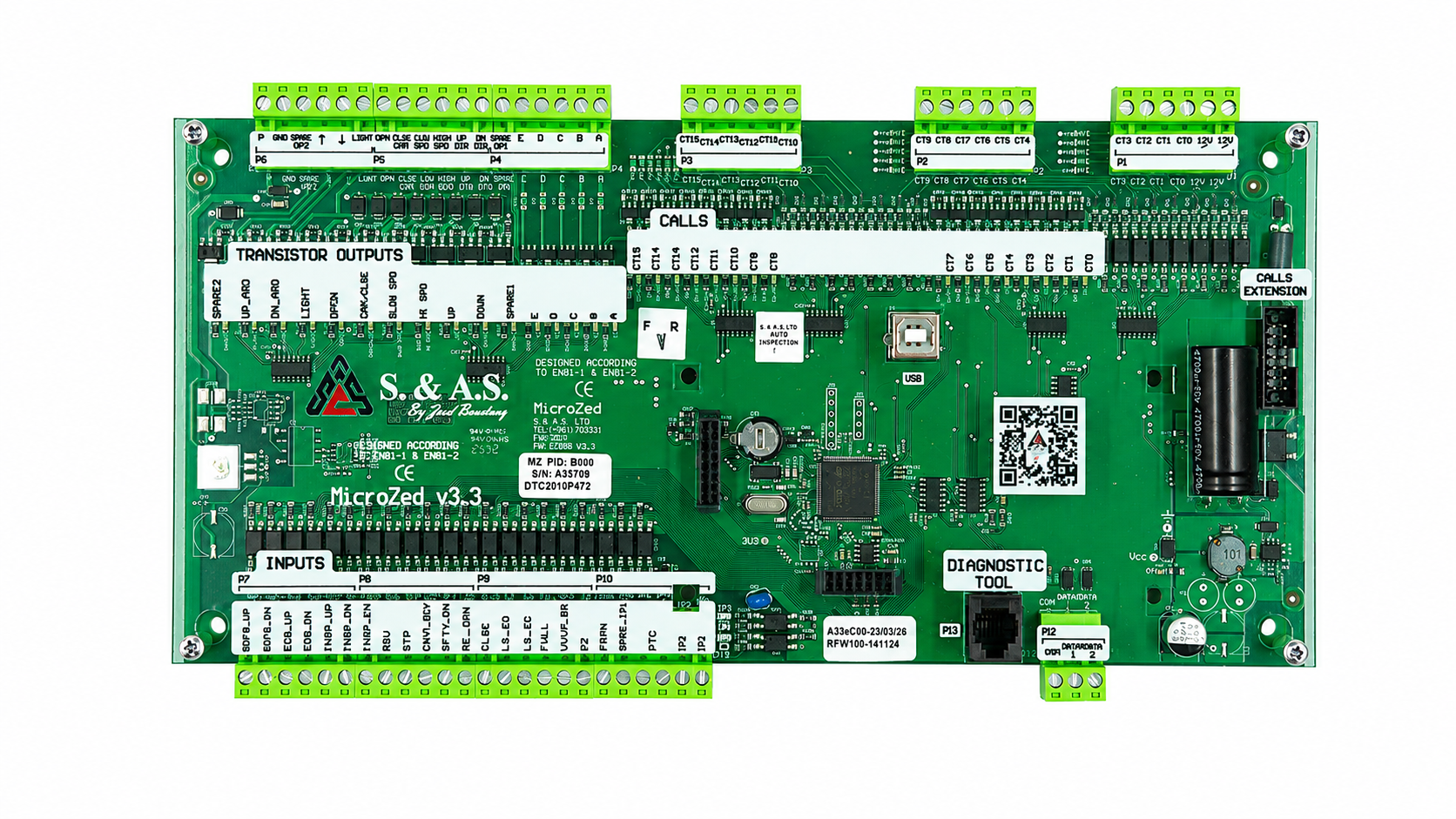

ELEVATOR CONTROLLER COLLECTIVE 1.6M/S MICROZED V3.3
Collective up to 32 stops
AC1 / AC2 speed / Hydraulic
VVVF for up to 1.6 m/s
Access Control using the COP
Carcall cancellation feature
On-site firmware upgrade
Conforms to EN81

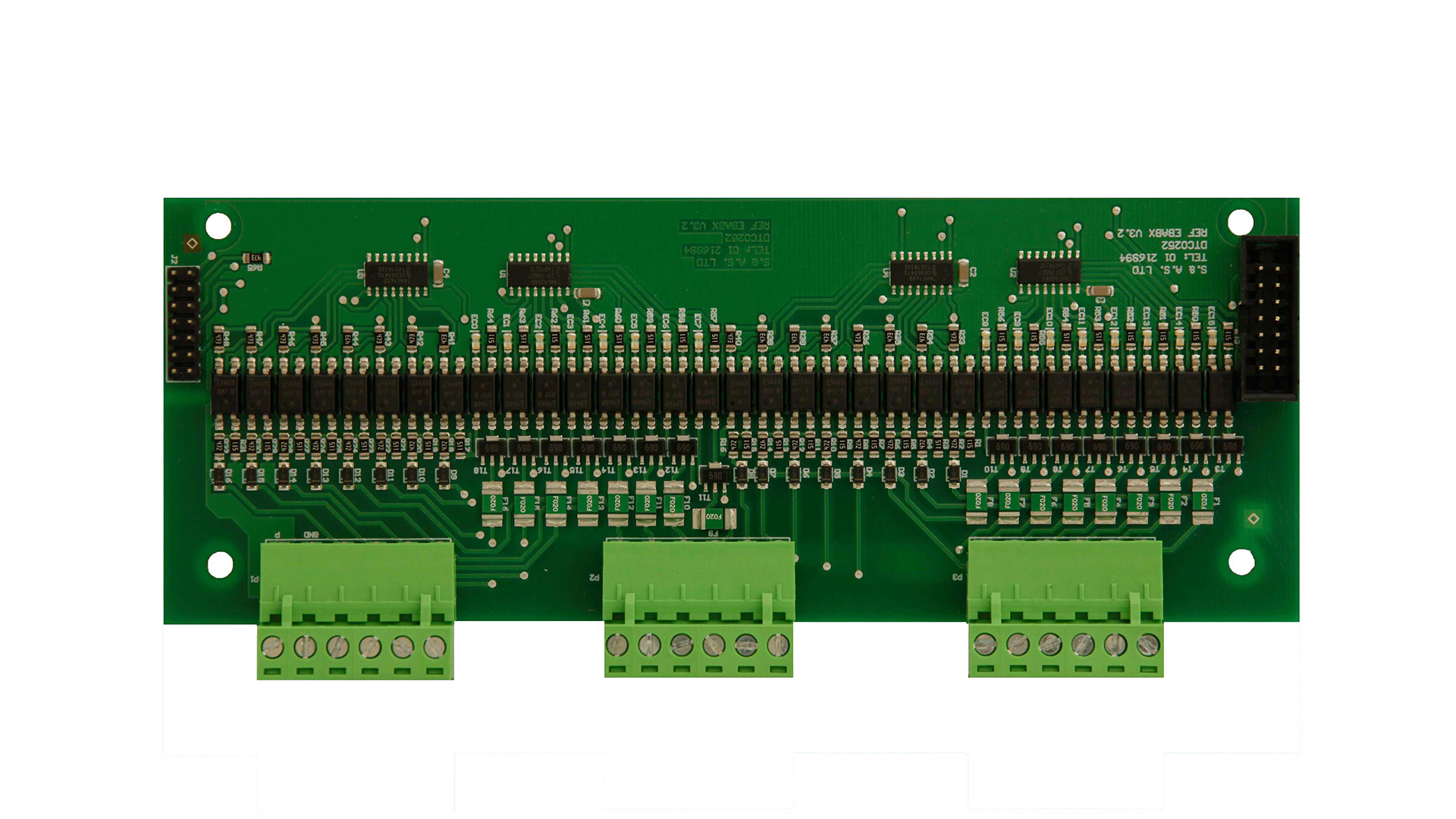

MICROZED EXTENSION BOARD MICROZEDX
Used with MicroZed V3.3A, V3.5A & MZCartop
Calls extension board

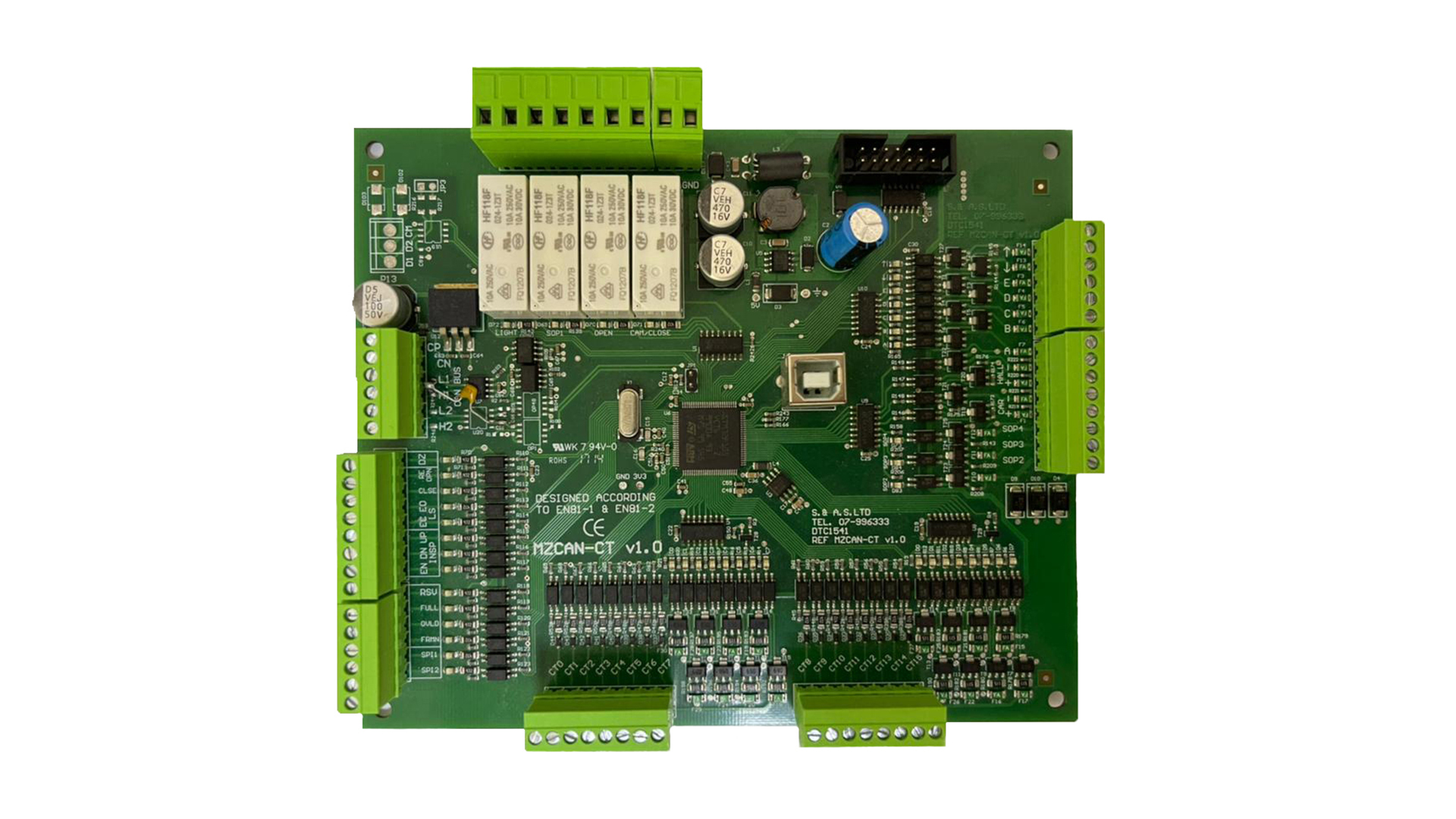

SERIAL CAR TOP BOARD MZ/CARTOP V1.0
CAN bus based serial device
Less wiring
Reduced maintenance calls
Up to 16 car calls extendable to 64 using MicroZedX
On-site firmware upgrade

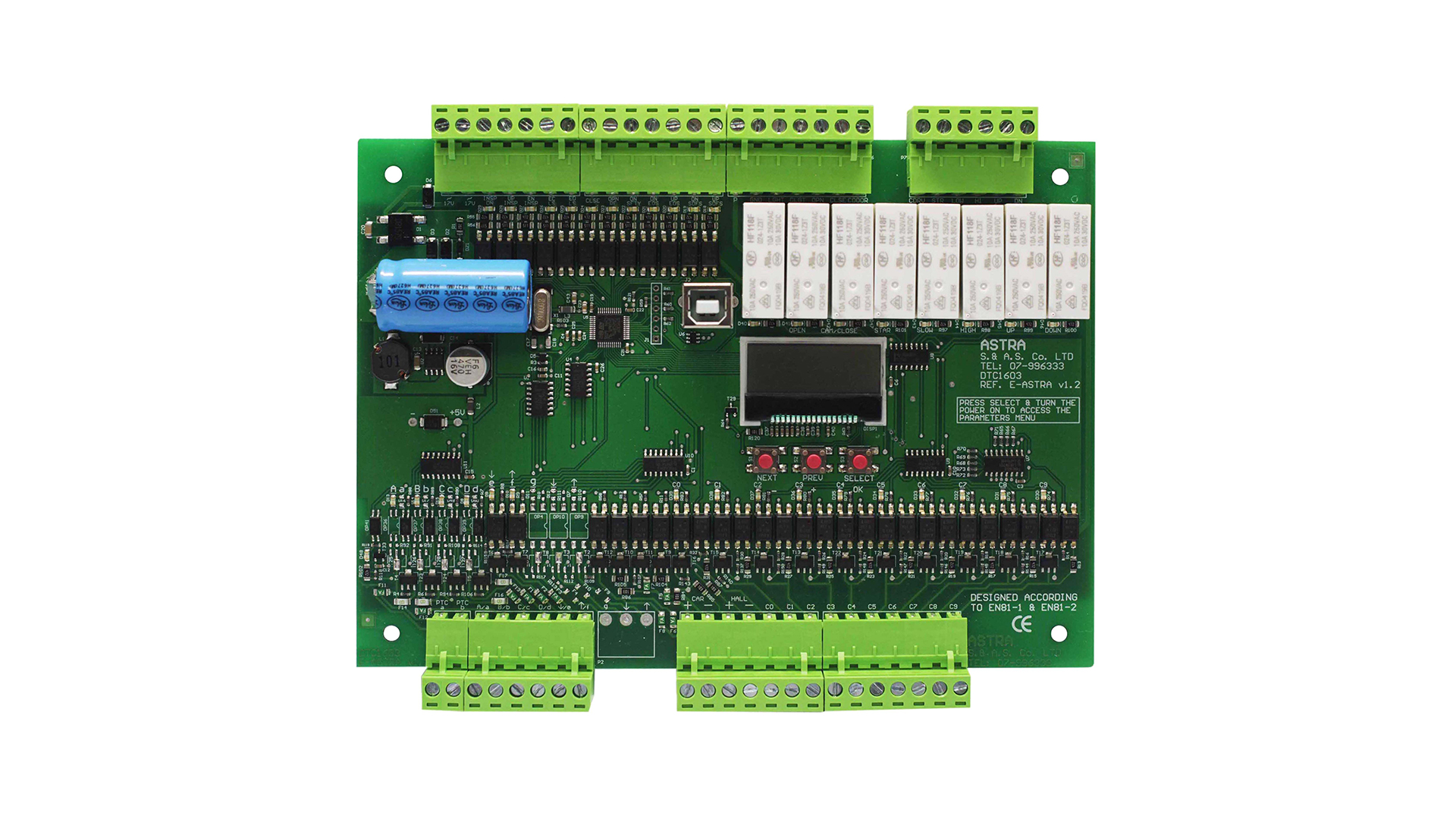

ELEVATOR CONTROLLER COLLECTIVE DOWN ? 10 STOPS ASTRA V1.2 /STD - W7SEG
Collective up to 10 stops with relay outputs
Symbolic graphic interface
Gray / Binary / Decimal / 7SEG indicator signals
AC1 / AC2 speed
Hydraulic / VVVF for up to 1.2 m/s
On-site firmware upgrade

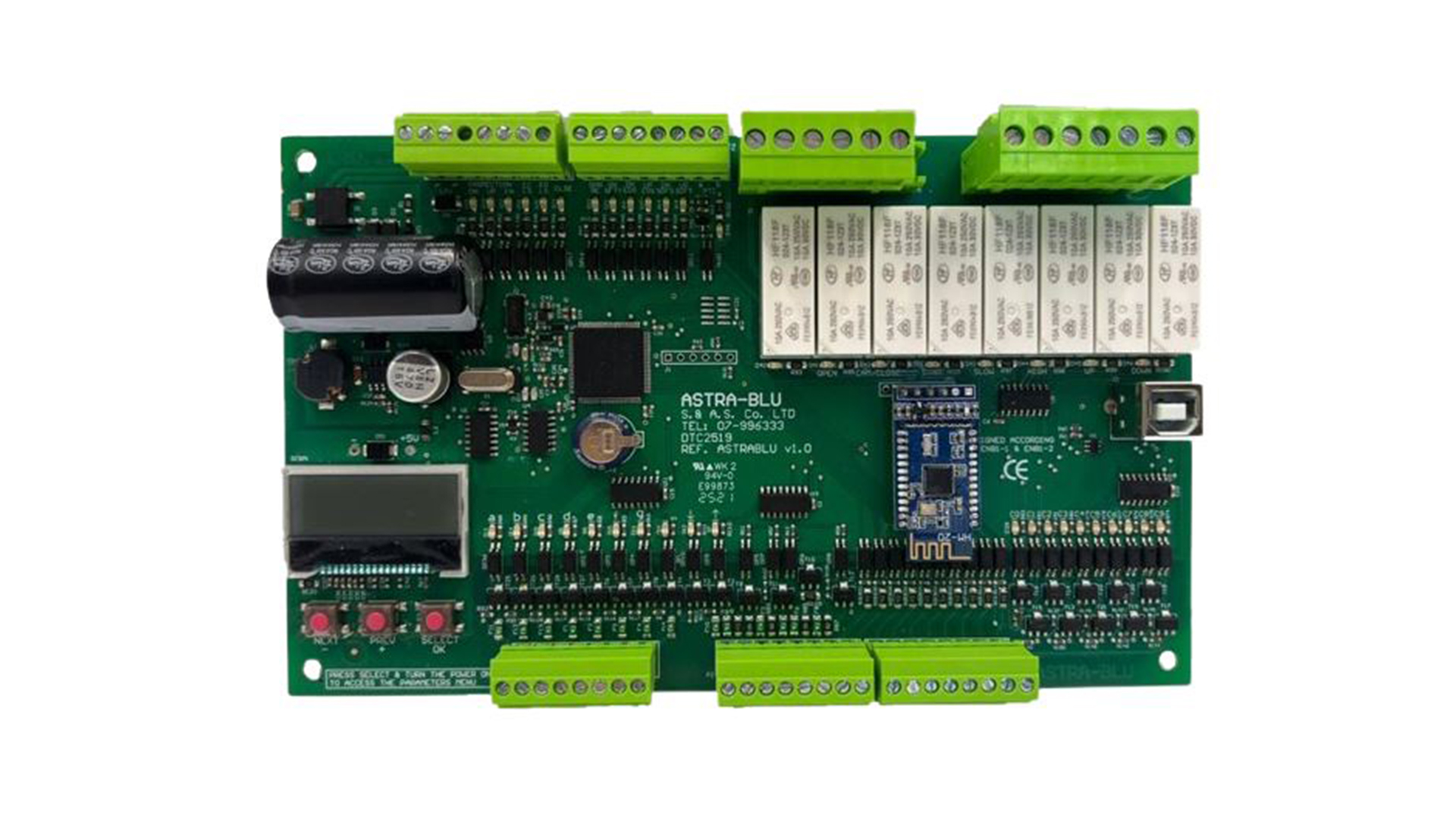

ELEVATOR CONTROLLER COLLECTIVE DOWN ? 10 STOPS ASTRA BLU
Collective up to 10 stops with relay outputs
Symbolic graphic interface
Gray / Binary / Decimal / 7SEG indicator signals
AC1 / AC2 speed
Hydraulic / VVVF for up to 1.2 m/s
On-site firmware upgrade
Bluetooth support

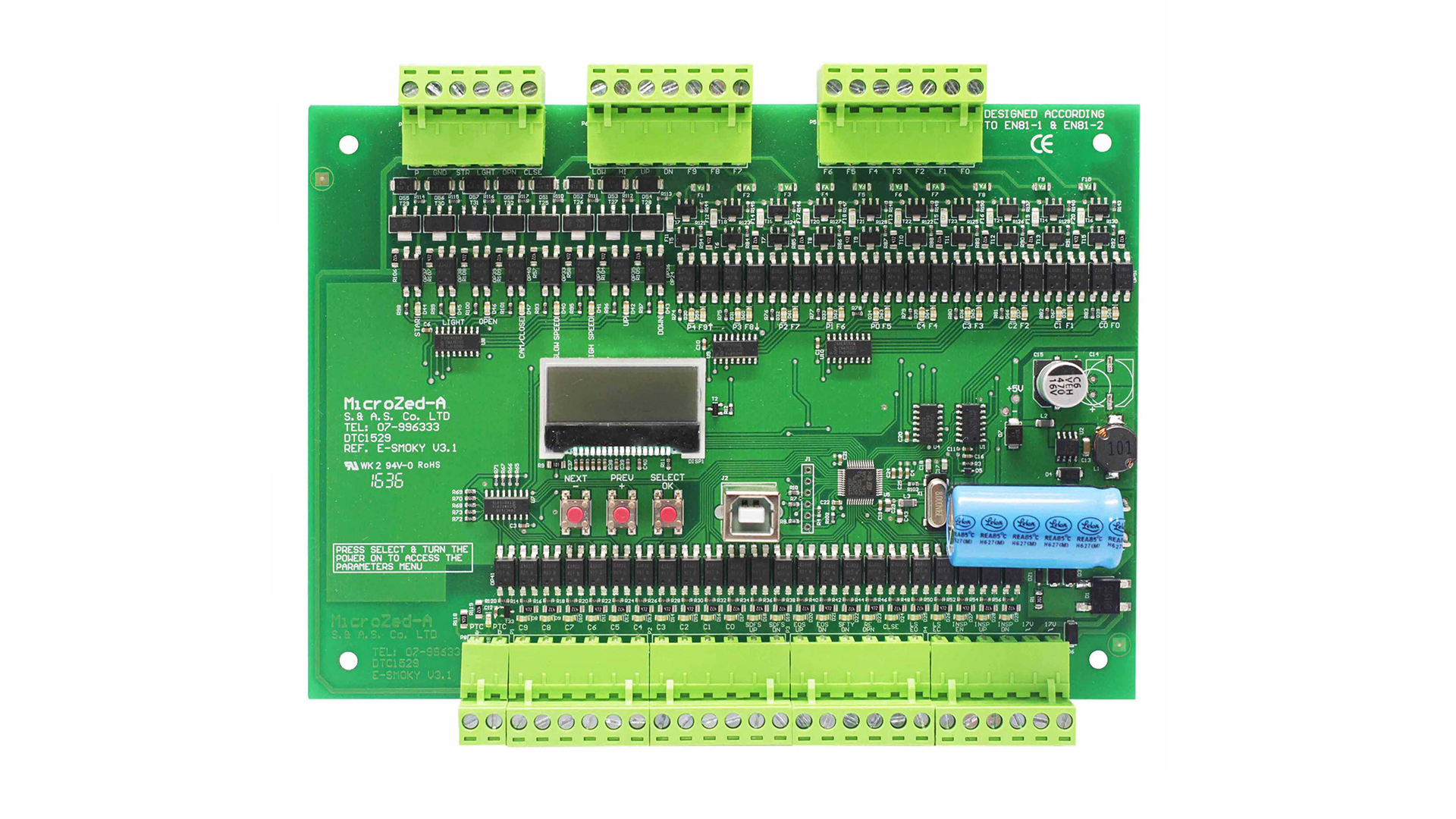

ELEVATOR CONTROLLER 10 STOPS AUTOMATIC PUSH BUTTON MICROZED A V3.1
Pseudo-collective up to 10 stops
Symbolic graphic interface
APB
AC1 / AC2 speed
Hydraulic / VVVF for up to 1 m/s
On-site firmware upgrade

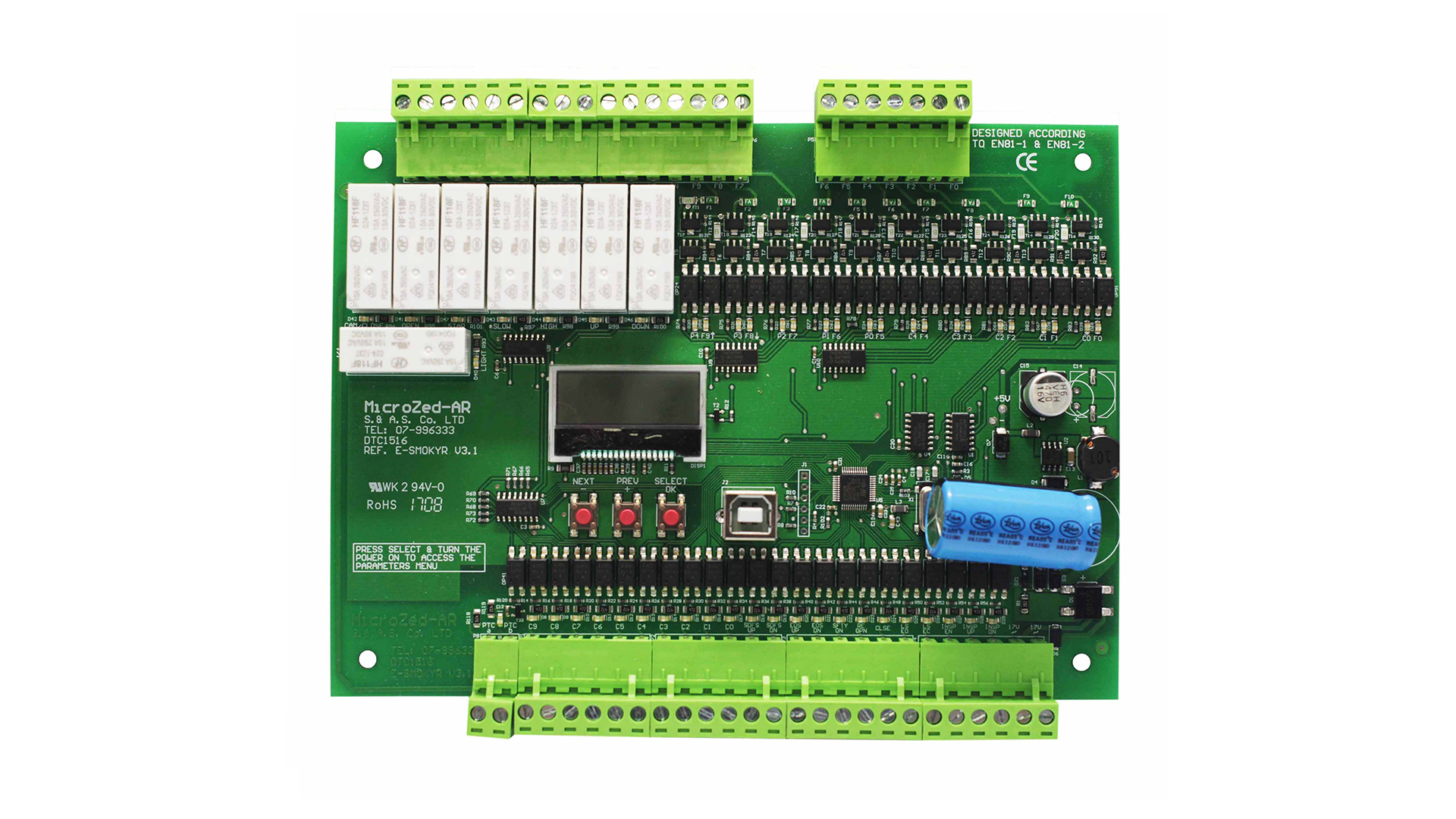

ELEVATOR CONTROLLER 10 STOPS APB WITH RELAYS MICROZED AR V3.1
Pseudo-collective up to 10 stops
Symbolic graphic interface
Relay outputs
APB
AC1 / AC2 speed
Hydraulic / VVVF for up to 1 m/s
On-site firmware upgrade

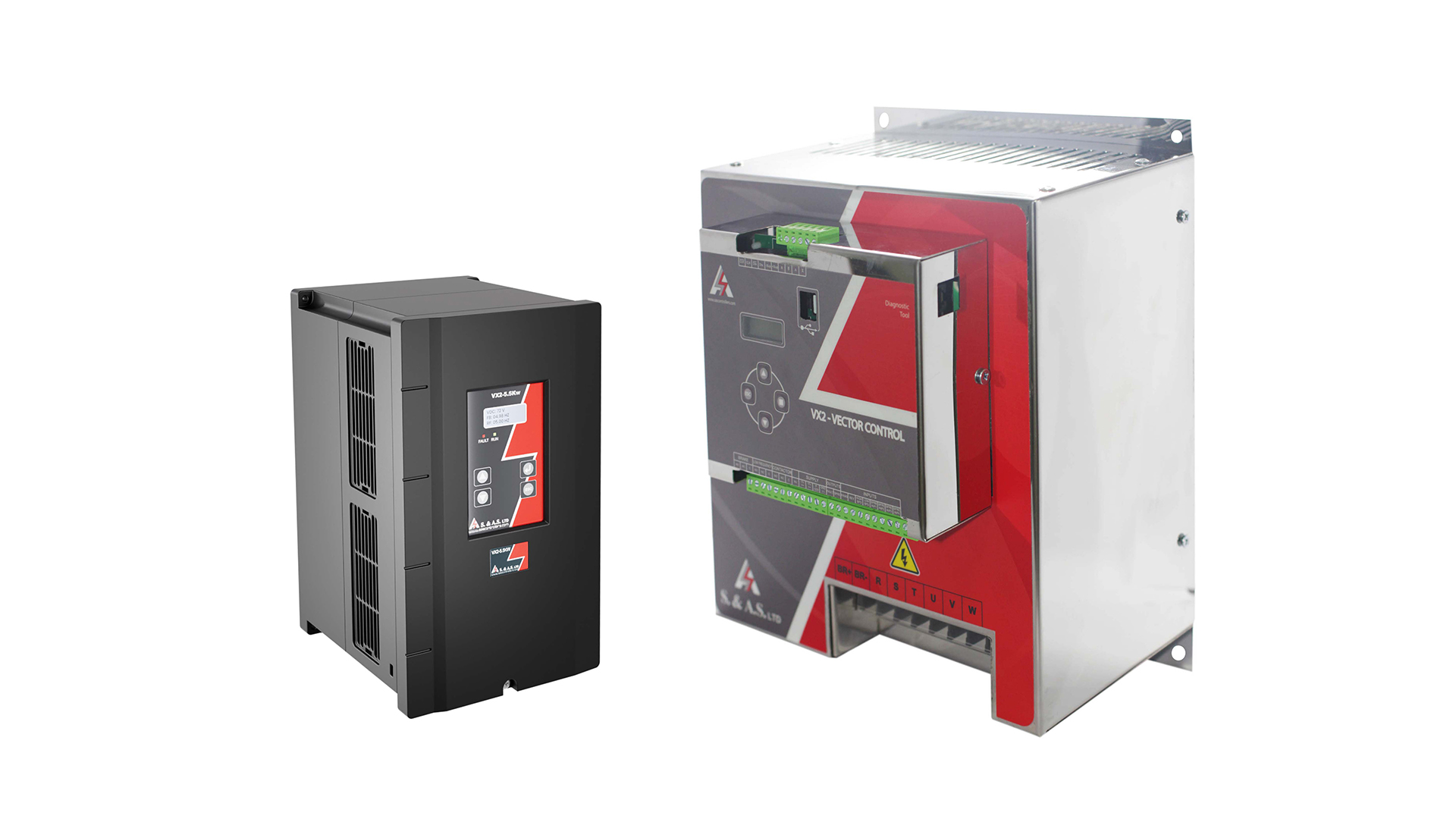

MOTOR DRIVE - VECTOR CONTROL VX2 SERIES - 5.5KW - 7.5KW - 11KW - 15KW - 22.5KW
Adaptive vector control
Auto-tuning algorithm
On-board backlit graphic display
Desktop application for performance data retrieval
Configurable inputs and outputs
On-site firmware upgrade

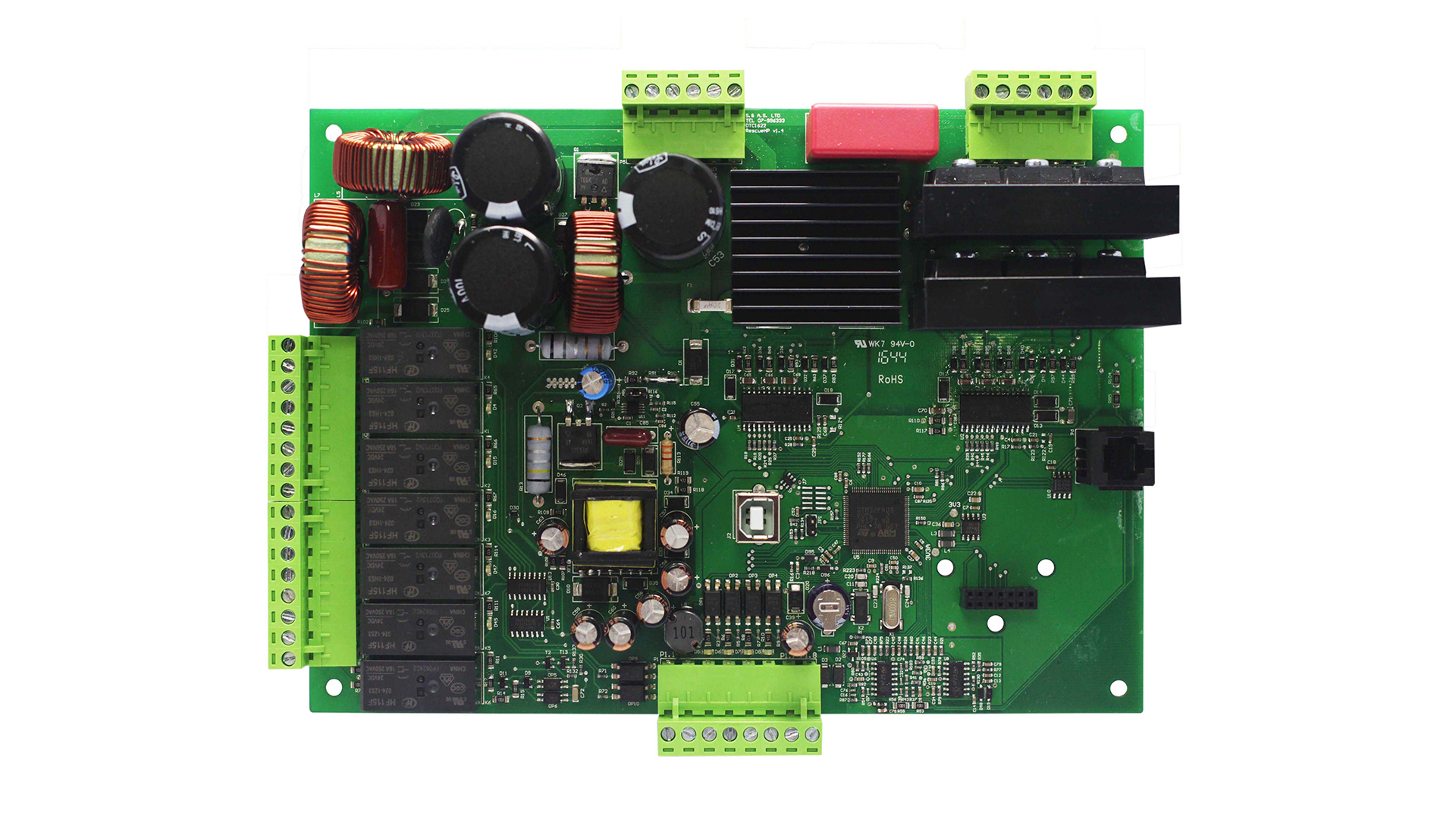

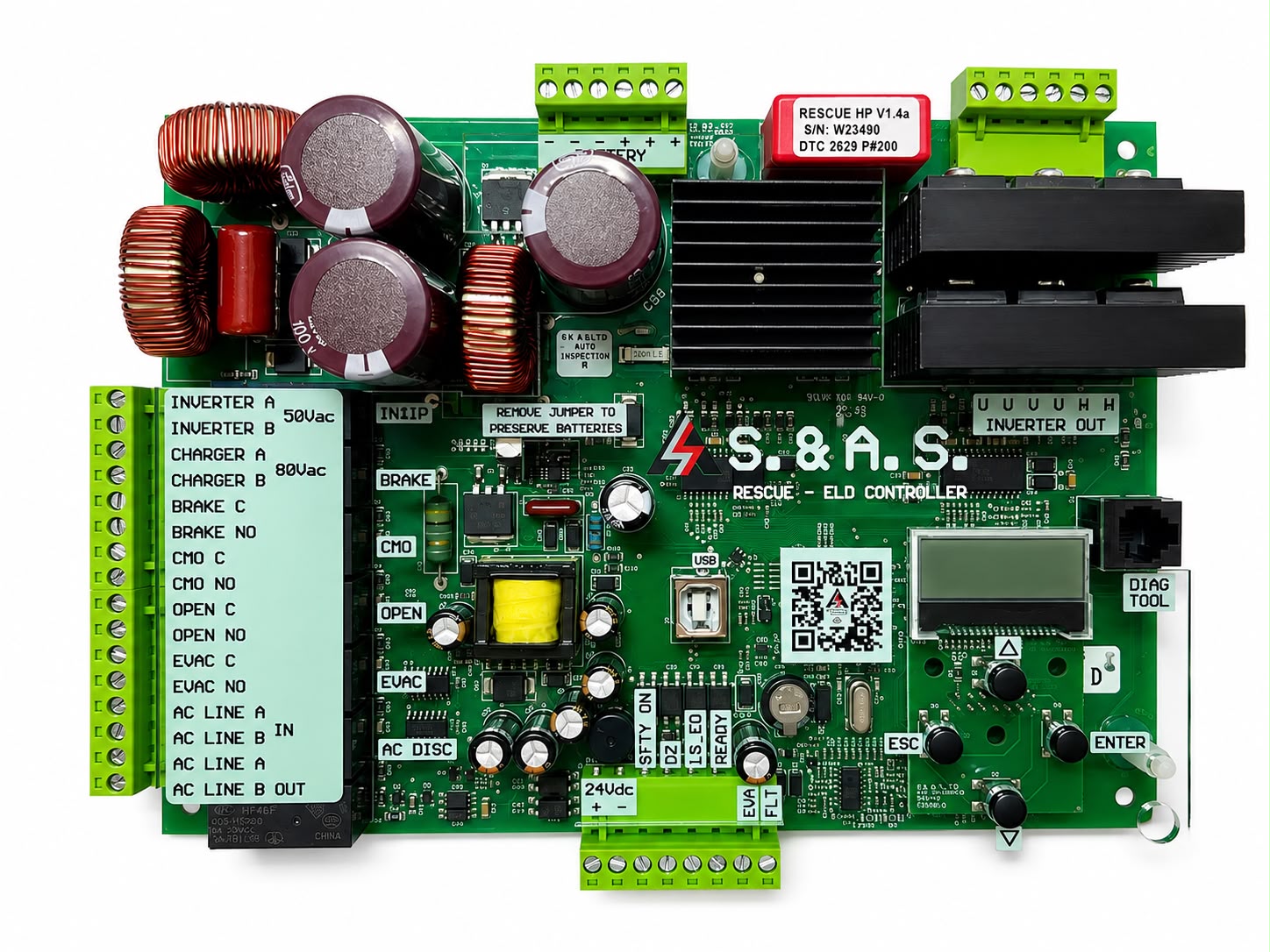

INTELLIGENT ELEVATOR RESCUE DEVICE CONTROLLER RESCUE V1.4 / STD-HP-VVVF-25 KW
Elevator evacuation system controller to the nearest floor in the direction that draws less current
Optional seamless evacuation (No abrupt stopping)
Single-phase sine wave inverter
A three-phase space vector modulated inverter
A state of the art battery Charger with 4 intelligent modes: Trickle, Bulk, Float or Full
Controller switches off after completing evacuation
Adapted for gearless motors
On-site firmware upgrade

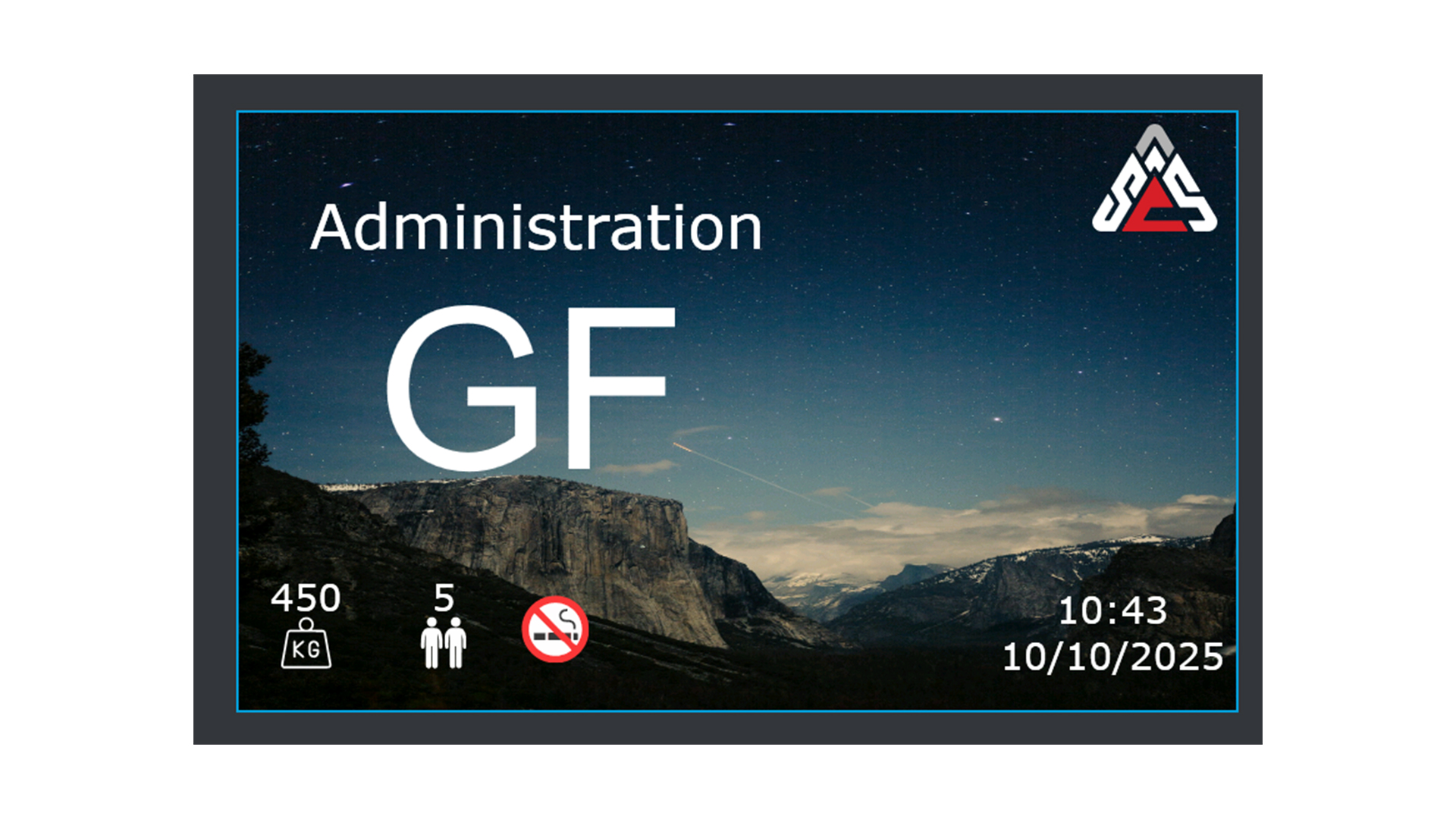

Lift TFT Indicator UniTFT 1.2 / STD - V

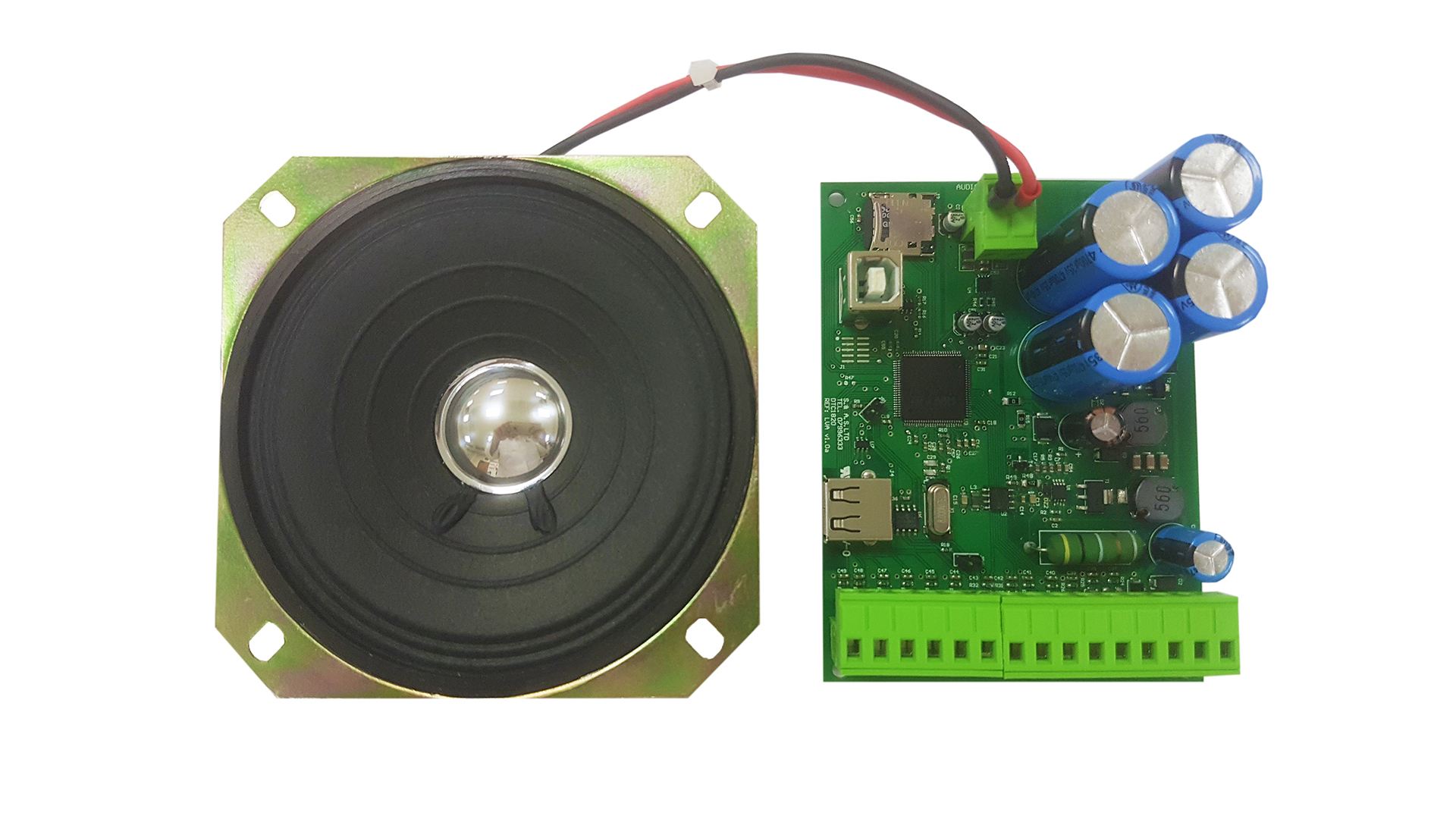

LIFT VOICE ANNOUNCER LVA / STD
Clear sound quality, Background MP3 Music, Memory Storage.
Multiple languages.
Male and Female voices.
Announcements: Floor Numbers, Special Messages.
Announcement Priorities
Full Control Settings.
Enhanced volume management.
Seperate volume control
Background music fade in/out before/after the announcement

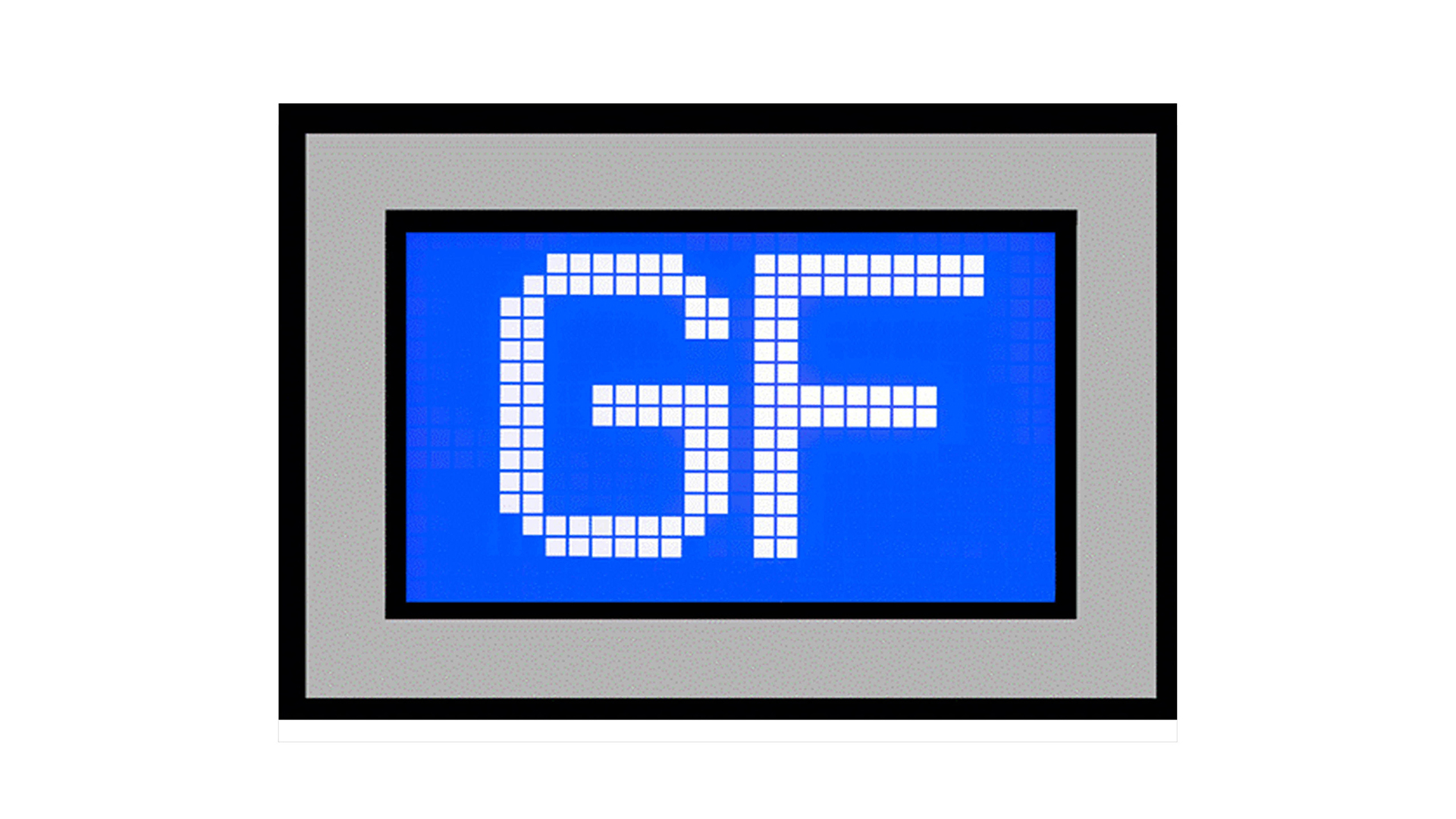

UNIVERSAL PROGRAMMABLE SCROLLING LCD INDICATOR UNILCD / STD
Universal scrolling display for the elevator floor information
28x17 pixels graphic display
Up to 32 floors configuration
Possibility of editing & modifying the display configuration for each floor
Floor / Hall greeting messages
Horizontal / Vertical mounting
Desktop application
Mobile application

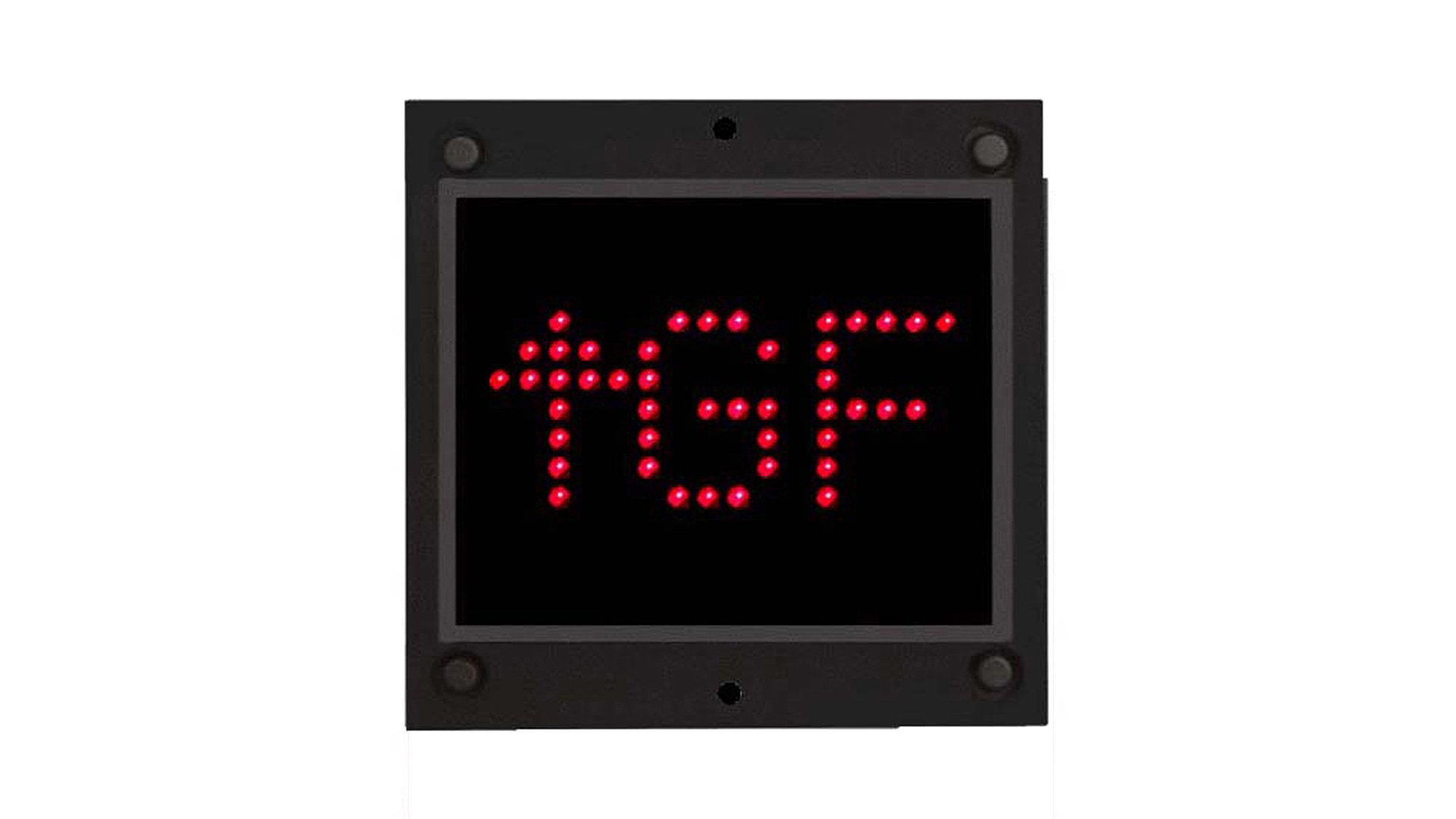

UNIVERSAL PROGRAMMABLE SCROLLING INDICATOR UNISCROLL2
Universal scrolling display for the elevator floor information
Three dot matrix characters (5 columns x 7 rows each).
Up to 32 floors configuration
Possibility of editing & modifying the display configuration for each floor
Floor stationary greeting message (optional)

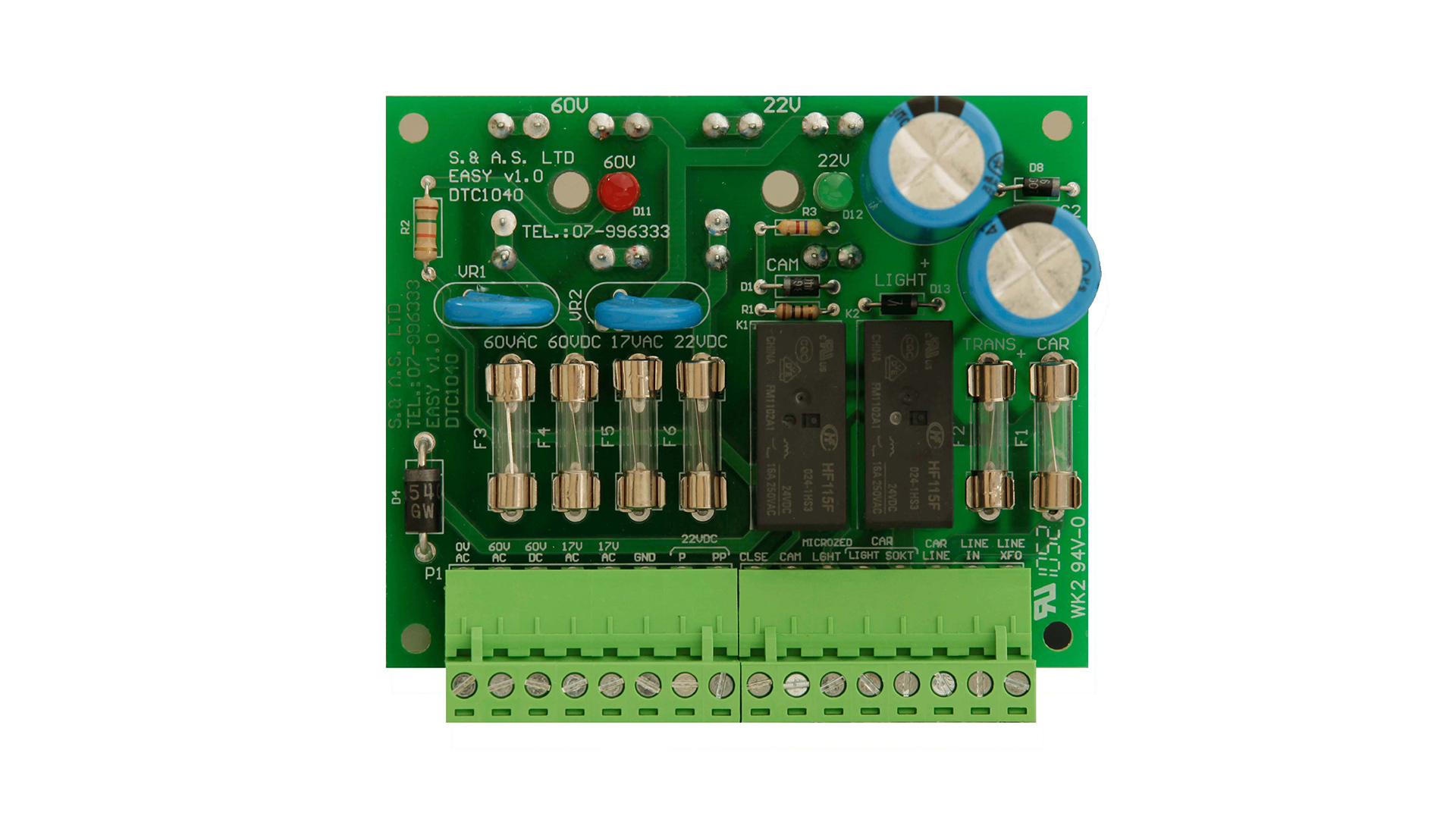

RECTIFIER BOARD FOR DC SUPPLIES WITH FUSES AND RELAYS EASY
Includes both 22VDC & 60VDC supplies
LEDs to show presence of 22Vdc and 60Vdc
Fuse for 17Vac, 22Vdc, 60Vac, 60Vdc
Fuse for380Vac feeding the main transformer and line feeding car socket
CAM & CAR light relays
Connection via labeled plug-in terminals

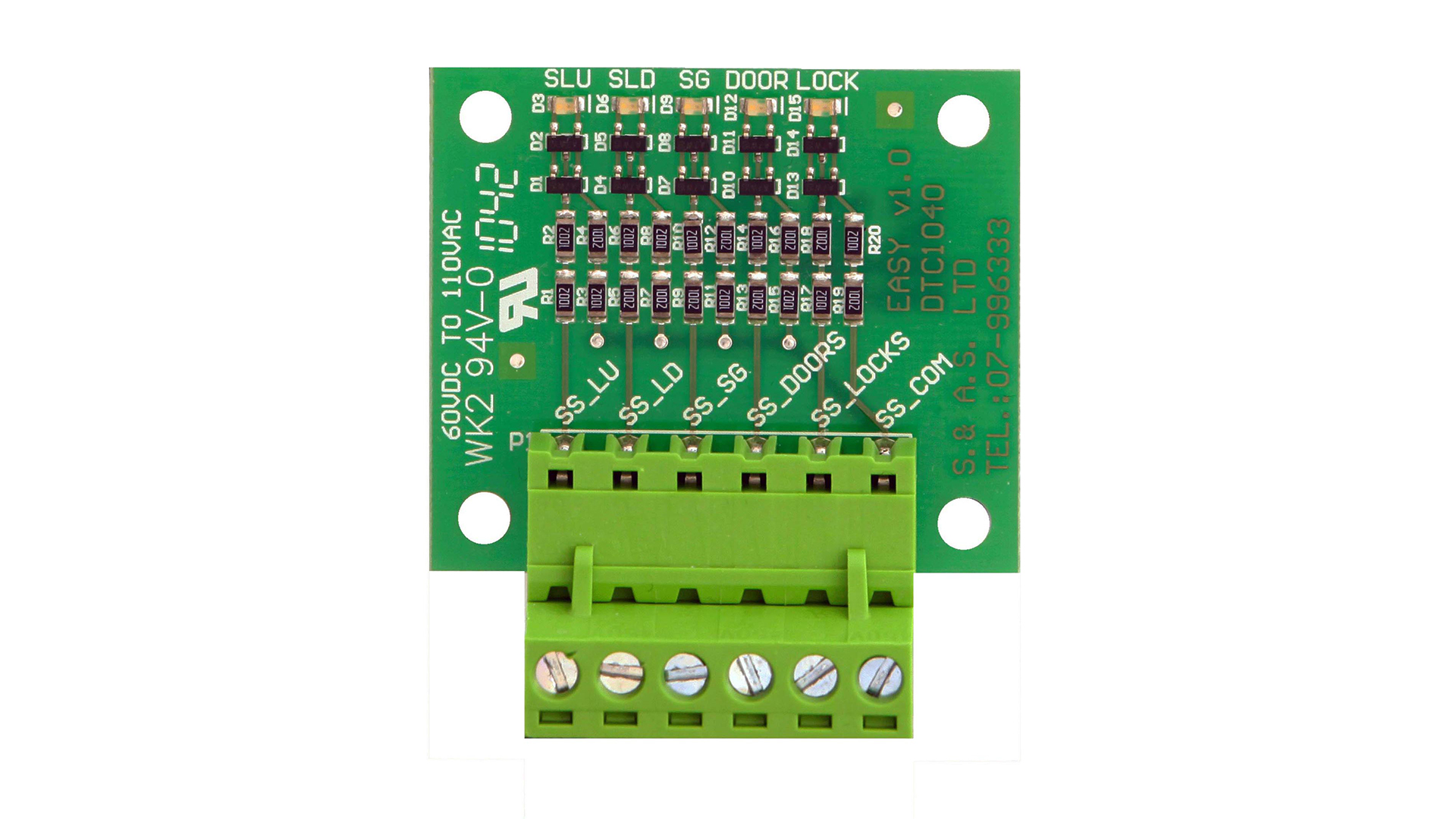

SAFETY CIRCUIT MONITORING BOARD EASYLOOK
Safety circuit voltage range: 60V to 110V DC & AC
LEDs to indicate the status of the safety circuit
Connection via plug-in terminals
